SPROCKET / CHAINRING

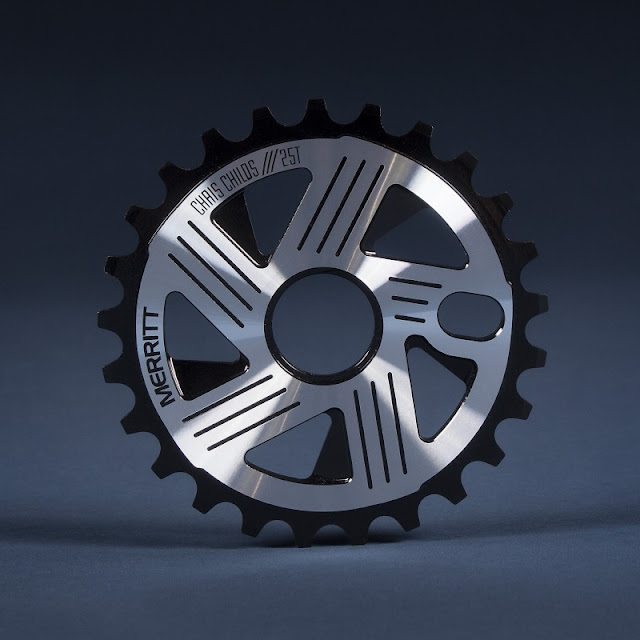

MERRITT CHRIS CHILDS SIGNATURE SPROCKET



Simple, clean and strong, Chris’ signature sprocket is badass. CNC’d from 7075 aluminum and includes flush fit adapters for 19mm, 22mm and 24mm cranks spindles. Available in 25T, 28T and 30T.

Weight:
3.1oz (25T)
Colors:Black with polished face

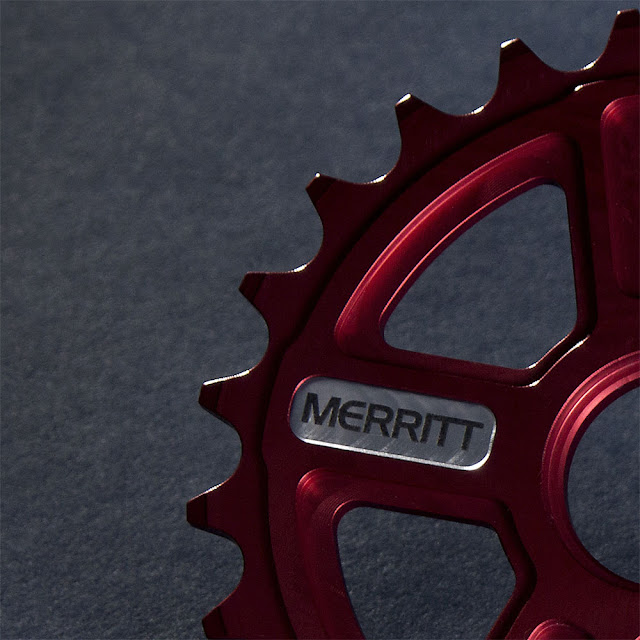

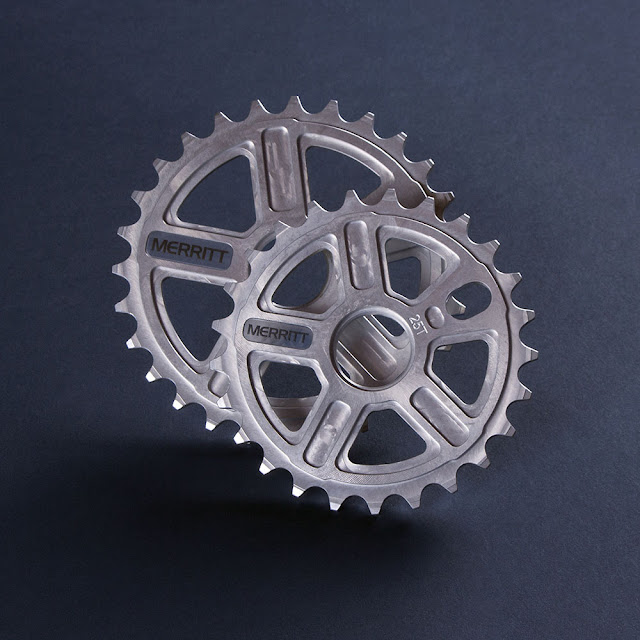

MERRITT MIGHTY SPROCKET






Made in the USA from 1/4″ thick 7075 aluminum with a laser etched polycarbonate insert. Comes with 19mm, 22mm and 24mm flush mount crank spindle adapters.
25T or 28T

Weight:
2.3oz (25T)
Colors:Black, red, silver

KINK ASTRO SPROCKET



Weight: 2.9oz (25t Bolt Drive)
Sizes: 25t, 28t, 30t
Color: Black, Polished
Thickness: 4.5mm
Heat Treated 4130 Chromoly Steel
Bolt Drive Works with 19mm, 22mm and 15/16” Spindles
Spline Drive Available in 19mm Only

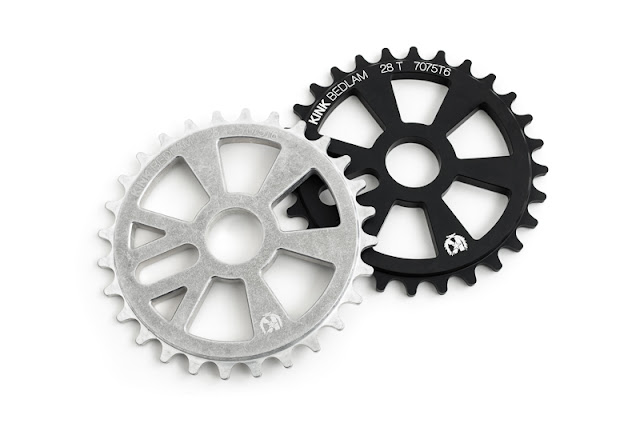

KINK BEDLAM SPROCKET



Sizes: 22t, 23t, 25t, 28t, 30t
Weight: 2.4oz (25t)
Color: Black, Raw, Blue, Bronze, Battleship Grey, Crimson Red, Matte Red
Thickness: 6.35mm (1/4″)
100% CNC Machined
Made from 7075-T6 Aluminum
Works with 15/16″, 19mm and 22mm Spindles

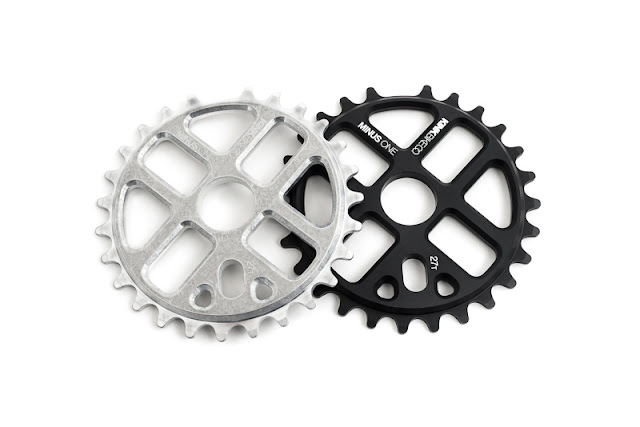

KINK MINUS ONE SPROCKET


Sizes: 23t, 25t, 27t, 28t, 30t, 33t
Weight: 2.4oz (25t)
Color: Black, Raw, Matte Red
One Tooth Removed For Easy Chain Installation and Removal
Thickness: 6.35mm (1/4″)
100% CNC Machined
Made from 7075-T6 Aluminum
Works with 15/16″, 19mm and 22mm Spindles

UNITED SUPREME SCD SPROCKET


The Supreme SCD solid sprocket is a nod to the classic CD style sprockets that used to be the only thing worth running on a freestyle bike. Updated for today’s modern riding by using 4mm thick CNC machined 7075-T6 alloy, a 23.8mm centre bore which is compatible on cranks with 19, 22 & 24mm spindles and finished off with CNC machined United logo detailing. The benefit of a solid design means even by using a thinner width material, you are getting a way stronger unit by not creating any points of stress like can happen when machining out complex holes and designs, and also a sprocket at that is a way more affordable price.

CNC machined 7075-T6 Alloy
4mm thick
23.8mm centre bore (works with 24mm spindle cranks)
centre aligned teeth profile
solid 'CD' design with CNC engraved United logos
25t Weight: 69g
28t Weight: 85g

DARTMOOR STAR SPROCKET



The Star sprocket will really set off your dream build, with its cool flowing lines lovingly CNC machined from a block of 7075 aluminium. This high end sprocket with 10 spokes design will come in a set with alu adapters for both most popular spindle diameters.

Size: 23T, 25T, 28T, 33T.
Teeth: 1/8”.
Bore: 15/16”.
Thickness: 6mm.
Adapter:19mm and 22mm included.

Weight: 56g (23T); 66g (25T); 80g (28T); 97g (33T).
Available spare parts: adapter for 19mm and 22mm spindle.

DARTMOOR TRANCE SPROCKET


Light and strong BMX sprocket with Dartmoor logo shape cut in the body. Made of alu 7075. CNC machined. Adapters for 19mm and 22mm axle included. For BMX chains (1/8").
Size: 23T, 25T, 28T.
Thickness: 6mm.

Weight: 56g / 1.98oz. (23T), 65g / 2.29oz. (25T), 90g / 3.17oz. (28T).
Available spare parts: adapter for 19mm and 22mm spindle

DARTMOOR FETISH SPROCKET


Light and durable BMX sprocket. Made of alu 7075. CNC machined. Adapters for 19mm and 22mm axle included. For BMX chains (1/8").

Size: 23T, 25T.
Thickness: 6mm.

Weight: 58g / 2.05oz. (23T), 66g / 2.33oz. (25T).
Available spare parts: adapter for 19mm and 22mm spindle

DARTMOOR TRAIL CHAINRING



One of the lightest MTB narrow-wide chainrings on the market. Made of the high quality 7075-T6 aluminium with fully CNC machining according to our custom design. Trail chainring is compatible with 11-speed drivetrains and thanks to the special narrow-wide teeth shape it maybe used as a single chainring without a chain guide. This function was confirmed by our Enduro and All Mountain team riders.

Size: 32T, 34T, 36T.
BCD: 104mm.
Thickness: 4mm.

Weight: 36g / 1.27oz. (32T), 45g / 1.58oz. (34T), 57g / 2.01oz. (36T).

DARTMOOR TOTEM CHAINRING



Lightweight MTB chainring made of high quality 7075-T6 aluminium. Fully CNC machined according to our custom design. Up to 30%-40% lighter than 6061 aluminium chainrings. For MTB chains (3/32").

Size: 32T, 34T, 36T, 38T.
BCD: 104mm.
Thickness: 4mm.

Weight: 40g / 1.41oz. (32T), 50g / 1.76oz. (34T), 63g / 2.22oz. (36T), 79g / 2.79oz. (38T).
DARTMOOR TABOO



Ultralight and durable MTB sprocket for singlespeed drives. Made of alu 7075. CNC machined. For BMX chains (1/8"). For those who use driver hubs (9T-11T) but prefer to keep lightweight MTB cranks.

Size: 23T, 25T.
BCD: 64mm.
Thickness: 5mm.

Weight: 28g / 0.99oz. (23T), 38g / 1.34oz. (25T).
