Specifications
+ Colors: Black, White, Red, Purple, Blue
+ 3pc chromoly crankset
+ 175mm crank arm length
+ 19mm 8 spline cold forged chromoly spindle
+ Seamless chromoly tubing
+ 9/16 pedal bosses
+ Right hand drive
+ Available in black
+ 2lb 5oz
UNITED NATHAN WILLIAMS BOSSLESS V2 NASH CRANKS
This new version of the Nathan Williams signature cranks are now bossless, so you can run them with the new Machinez sprockets. From the start when working on these signature United Nathan Williams Nash Cranks, he had some very specific ideas for how he wanted them to look, they needed to be easy to install and maintain, and obviously able to withstand the pressures of his riding. We took these ideas and combined them with some proven manufacturing processes and by using FEA analysis software have managed to create a lightweight and street tough pair of cranks.
The design has been kept slim, clean and simple to create classic looking arms without any fancy gimmicks, but it's whats on the inside that counts. by hollowing out the 22mm spindle as much as possible and creating arms with a shape to offer greater bend resistance and strength, we have made a set of cranks Nathan is proud to put his name to. As a final touch, all cranks are supplied with an installation/removal tool and a small sachet of grease, which make fitting them a breeze.
UNITED NATHAN WILLIAMS NASH CRANKS
The design has been kept slim, clean and simple to create classic looking arms without any fancy gimmicks, but it's whats on the inside that counts. by hollowing out the 22mm spindle as much as possible and creating arms with a shape to offer greater bend resistance and strength, we have made a set of cranks Nathan is proud to put his name to. As a final touch, all cranks are supplied with an installation/removal tool and a small sachet of grease, which make fitting them a breeze.
UNITED NATHAN WILLIAMS NASH CRANKS
From the start when working on these signature United Nathan Williams Nash Cranks, he had some very specific ideas for how he wanted them to look, they needed to be easy to install and maintain, and obviously able to withstand the pressures of his riding. We took these ideas and combined them with some proven manufacturing processes and by using FEA analysis software have managed to create a lightweight and street tough pair of cranks.
The design has been kept slim, clean and simple to create classic looking arms without any fancy gimmicks, but it’s whats on the inside that counts. by hollowing out the 22mm spindle as much as possible and creating arms with a shape to offer greater bend resistance and strength, we have made a set of cranks Nathan is proud to put his name to. As a final touch, all cranks are supplied with an installation/removal tool and a small sachet of grease, which make fitting them a breeze.

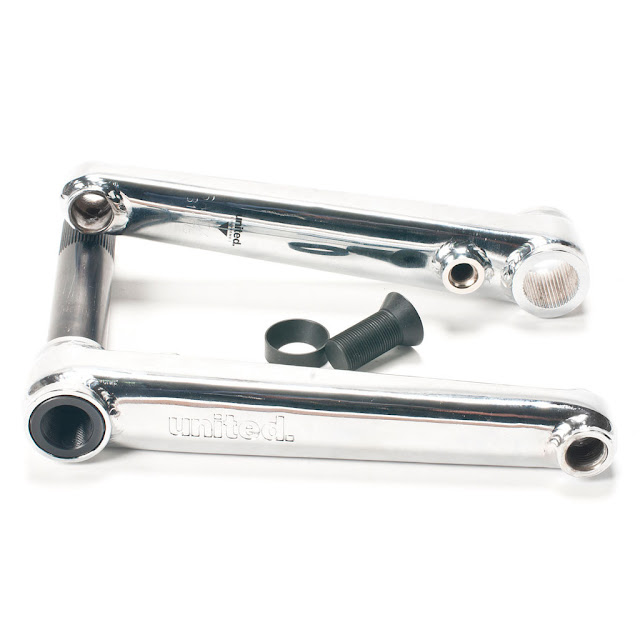

UNITED SUPREME V2 2PC CRANKS
The design has been kept slim, clean and simple to create classic looking arms without any fancy gimmicks, but it’s whats on the inside that counts. by hollowing out the 22mm spindle as much as possible and creating arms with a shape to offer greater bend resistance and strength, we have made a set of cranks Nathan is proud to put his name to. As a final touch, all cranks are supplied with an installation/removal tool and a small sachet of grease, which make fitting them a breeze.
UNITED SUPREME V2 2PC CRANKS
Our United Supreme v2 cranks now use a 2pc system to enable a simpler installation process. 100% heat treated seamless 4130 cromo arms with custom stamped United logo detailing, and a new 22mm hollow spindle.
100% heat treated seamless 4130 cromo arms
22mm 48 spline heat treated cromo spindle
Left or right hand drive compatible
974 g / 34.3 oz for arms, spindle and all hardware
UNITED SUPREME V2 3PC CRANKS
United Supreme v2 3pc cranks. 100% heat treated seamless 4130 cromo arms with custom stamped United logo detailing, and a new 22mm hollow spindle.
100% heat treated seamless 4130 cromo arms
22mm 48 spline heat treated cromo spindle
Left or right hand drive compatible
974 g / 34.3 oz for arms, spindle and all hardware
KINK PILLAR CRANKS
Weight: 28.5oz
Color: Black ED, Chrome, White, Gray
170mm Available in Black Only
Length: 175mm & 170mm
22mm Hollow Spindle
RHD/LHD compatible.
Regular And Micro Drive Sprocket Bolt
2pc 48-Spline Design
1pc Forged Backplate Ties Together Pedal and Spindle Bosses While Acting As A Backbone To Each Crank Arm
Lifetime Warranty Guaranteed
DARTMOOR ROCK MTB CRANKS
New MTB cranks in our collection which will fit well our new Hornet and Primal frames. 2-pcs construction cranks with an integrated 24mm axle make them trustworthy and trouble-free in every condition. The 10-splines design combined with 2-bolt left arm guarantees a really strong connection. They come with a dedicated 36T aluminium chainring and an external bottom bracket fully compatible with the Shimano standard and frames with 68mm or 73mm BB shells. If you look for the entry level MTB cranks that will not ruin your budget and will look really cool in your bike - Rock is for you!
Arms length: 175 mm.
Spindle: 24mm.
Splines: 10.
Spindle bolt: M18xP1.0.
Weight: 915g (without external bearings).
DARTMOOR THORN BMX/MTB CRANKS
DARTMOOR ROCK MTB CRANKS
New MTB cranks in our collection which will fit well our new Hornet and Primal frames. 2-pcs construction cranks with an integrated 24mm axle make them trustworthy and trouble-free in every condition. The 10-splines design combined with 2-bolt left arm guarantees a really strong connection. They come with a dedicated 36T aluminium chainring and an external bottom bracket fully compatible with the Shimano standard and frames with 68mm or 73mm BB shells. If you look for the entry level MTB cranks that will not ruin your budget and will look really cool in your bike - Rock is for you!
Arms length: 175 mm.
Spindle: 24mm.
Splines: 10.
Spindle bolt: M18xP1.0.
Weight: 915g (without external bearings).
DARTMOOR THORN BMX/MTB CRANKS
2-pcs design cranks made of heat-treated Cr-Mo 4130 steel with 22mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (welded to the right arm), 2 spindle bolts (alu 7075-T6 and Cr-Mo), 2 sprocket bolts (bigger one is hollow) and assembly/disassembly tool.
Available with 2 spindle lengths:
160mm (Thorn MTB) designed to work with Euro external bearings (like Dartmoor Euro eX BB 22mm) with 68mm or 73mm BB shells to create an extra strong and efficient combination with frames like Two6Player
150mm (Thorn BMX) perfectly working with Spanish or MID BB equipped frames as well as standard Euro BB to minimize number of required spacers for such kind of frames and keep correct chain line
Arms length: 170 mm.
Available with 2 spindle lengths:
160mm (Thorn MTB) designed to work with Euro external bearings (like Dartmoor Euro eX BB 22mm) with 68mm or 73mm BB shells to create an extra strong and efficient combination with frames like Two6Player
150mm (Thorn BMX) perfectly working with Spanish or MID BB equipped frames as well as standard Euro BB to minimize number of required spacers for such kind of frames and keep correct chain line
Arms length: 170 mm.
Spindle: 22mm hollow.
Splines: 48.
Spindle bolt: 5/8”x24T (8mm Allen key).
Weight: 745g / 1.64lbs. (with alu spindle bolt), 763g / 1.68lbs. (with Cr-Mo spindle bolt).
Available spare parts: alu spindle bolt

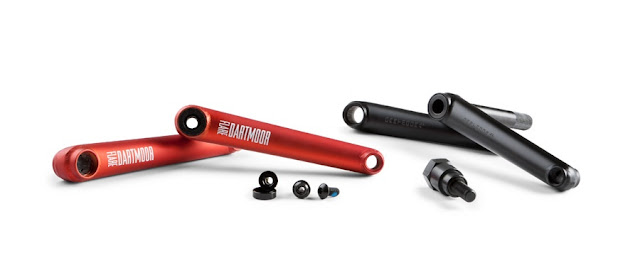

DARTMOOR FLARE BMX CRANKS 2015
Light and strong 2.5-pcs cranks made of heat-treated Cr-Mo 4130 steel with 19mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (pressed into the right arm), Cr-Mo spindle bolt, 2 sprocket bolts (bigger one is hollow), assembly tool.
Arms length: 170 mm.
Light and strong 2.5-pcs cranks made of heat-treated Cr-Mo 4130 steel with 19mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (pressed into the right arm), Cr-Mo spindle bolt, 2 sprocket bolts (bigger one is hollow), assembly tool.
Arms length: 170 mm.
Spindle: 19mm hollow.
Splines: 48.
Spindle bolt: M12x1mm (6mm Allen key).
Weight: 814g / 2.02lbs.
Available spare parts: Cr-Mo spindle bolt.
DARTMOOR FLARE BMX CRANKS 2012
Light and strong 2.5-pcs cranks made of heat-treated Cr-Mo 4130 steel with 19mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (pressed into the right arm), Cr-Mo spindle bolt, 2 sprocket bolts (bigger one is hollow), assembly tool.
Arms length: 170 mm.
Spindle: 19mm hollow.
Splines: 48.
Spindle bolt: M12x1mm (6mm Allen key).
Weight: 814g / 2.02lbs.
Available spare parts: Cr-Mo spindle bolt.
DARTMOOR KEIPO EX MTB CRANKS
Keipo is one of our most popular BMX cranks but Keipo eX is still not as well recognized as it should be. Do you have an MTB frame with Euro BB shell - like Two6Player - and have faced many problems with weak Euro bearings? That is because typical Euro BB standard has too small bearings which are often crushed during the high intensity riding like street or dirt jumping.
Keipo eX brings you a solution to this problem. With much bigger bearings offered by the external Euro bearings, you get the strength of a Spanish BB while keeping the ease of fitting any normal Euro bottom bracket.
No matter if you have a 68mm or 73mm Euro BB shell in your frame you can trust Keipo eX will cope with everything you can chuck at them.
Arms length: 175m.
Spindle: 19mm hollow.
Spindle length: 148mm.
Splines: 16.Weight: 995g / 2.19lbs. (including Euro eX BBs).
Available spare parts: spindle, alu spindle bolts, Cr-Mo spindle bolts, pinch bolts
DARTMOOR KEIPO BMX CRANKS
3-pcs design cranks made of heat-treated 100% Cr-Mo 4130 steel. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle, Cr-Mo spindle bolts, 2 sprocket bolts (bigger one is hollow) and pinch bolts. Alu spindle bolts available as separate spare parts.
Arms length: 175 mm.
Spindle: 19mm hollow.
Splines: 16.
Spindle bolts: M12x1mm (6mm Allen key).
Pinch bolts: M6x1mm.
Weight: 835g / 29.45oz.
Available spare parts: spindle, alu spindle bolts, Cr-Mo spindle bolts, pinch bolts
DARTMOOR FLARE BMX CRANKS 2012
Light and strong 2.5-pcs cranks made of heat-treated Cr-Mo 4130 steel with 19mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (pressed into the right arm), Cr-Mo spindle bolt, 2 sprocket bolts (bigger one is hollow), assembly tool.
Arms length: 170 mm.
Spindle: 19mm hollow.
Splines: 48.
Spindle bolt: M12x1mm (6mm Allen key).
Weight: 814g / 2.02lbs.
Available spare parts: Cr-Mo spindle bolt.
DARTMOOR KEIPO EX MTB CRANKS
Keipo is one of our most popular BMX cranks but Keipo eX is still not as well recognized as it should be. Do you have an MTB frame with Euro BB shell - like Two6Player - and have faced many problems with weak Euro bearings? That is because typical Euro BB standard has too small bearings which are often crushed during the high intensity riding like street or dirt jumping.
Keipo eX brings you a solution to this problem. With much bigger bearings offered by the external Euro bearings, you get the strength of a Spanish BB while keeping the ease of fitting any normal Euro bottom bracket.
No matter if you have a 68mm or 73mm Euro BB shell in your frame you can trust Keipo eX will cope with everything you can chuck at them.
Arms length: 175m.
Spindle: 19mm hollow.
Spindle length: 148mm.
Splines: 16.Weight: 995g / 2.19lbs. (including Euro eX BBs).
Available spare parts: spindle, alu spindle bolts, Cr-Mo spindle bolts, pinch bolts
DARTMOOR KEIPO BMX CRANKS
3-pcs design cranks made of heat-treated 100% Cr-Mo 4130 steel. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle, Cr-Mo spindle bolts, 2 sprocket bolts (bigger one is hollow) and pinch bolts. Alu spindle bolts available as separate spare parts.
Arms length: 175 mm.
Spindle: 19mm hollow.
Splines: 16.
Spindle bolts: M12x1mm (6mm Allen key).
Pinch bolts: M6x1mm.
Weight: 835g / 29.45oz.
Available spare parts: spindle, alu spindle bolts, Cr-Mo spindle bolts, pinch bolts
DARTMOOR CHUKKA TWO BMX CRANKS
Reliable, entry level BMX 3-pcs cranks. Crankarms made of 4130 Cr-Mo steel seamless tubes. 19mm axle with 8 splines. With steel crank bolts and sprocket bolt included.
Arms length: 175m.
Reliable, entry level BMX 3-pcs cranks. Crankarms made of 4130 Cr-Mo steel seamless tubes. 19mm axle with 8 splines. With steel crank bolts and sprocket bolt included.
Arms length: 175m.
Axle diam.: 19mm.
Splines: 8.
Weight: 1100g / 38.79oz..
Available spare parts: spindle, Cr-Mo crank bolts, pinch bolts
