FRONT HUBS

MERRITT NON-STOP FRONT HUBS



Simple, strong and fast front hub with low flanges and optimal spacing. CNC’d from 6061 aluminum with a chromoly female axle. With two high quality Japanese bearings these hubs roll forever.

Weight:10.3oz
Colors:Black or polished

KINK BOULEVARD FRONT HUB

Weight: 7.6oz
Color: Black, Raw, Blue, Bronze, Crimson Red, Battleship Grey, Matte Red
Hub Guard Included
Axle: Hollow 15mm 7075-T6 Aluminum
Shell: Full CNC 7075-T6 Aluminum
Hardware: 1 Fixed / 1 Removable 7075-T6 Bearing Cone
Axle Bolts: 8mm Allen Hex / 17mm Socket
2 Super Durable 6902 Sealed Bearings
Floating Axle System With 7075 Bearing Spacer
Compatible with Kink Plastic Hub Guards on 1 or Both Sides
36 Hole Only

KINK VIRIDIAN II FRONT HUB

Weight: 6.9oz
Color: Black, Blue, Bronze, Battleship Grey, Crimson Red
Axle: Hollow 15mm 7075-T6 Aluminum
Shell: Full CNC 7075-T6 Aluminum
Hardware: 1 Fixed/1 Removable 7075-T6 Bearing Cone
Axle Bolts: 8mm Allen Hex/17mm Socket
Extra Wide Flange Offset
2 Precision Sealed Bearings
Floating Axle System with 7075 Bearing Spacer
New Refined Axle and Hardware Design
Available in 36H Only

UNITED SUPREME FEMALE FRONT HUB

The Supreme front hub is a clean and simple precision 36h female bolt hub, built with affordability in mind. Two sealed bearings, a heat treated core axle, along with the ability to use an allen key or 17mm for installation.

36 spoke holes
6061-T6 aluminium hub shell
2 x precision sealed bearings
Heat treated 4130 axle
10mm x 24t heat treated axle bolts with 6mm allen key slots and 17mm flats

Weight: 286 g / 10 oz

DARTMOOR VEE TWO



Very light front disc hub with hub body made of 6061 aluminium and hollow alu 7075 axle with 6mm female bolts. This hub is equipped with 2 high quality sealed bearings. Machined cut-outs in disc side flange and machined disc brake mount are applied for weight reduction.

New delivery which will come with the new logo matching our refreshed graphics line.

Hub-shell: alu 6061-T6.
Axle: hollow alu 7075-T6, 9mm.
Bolts: hollow Cr-Mo, 6mm, heat-treated.
Cones: alu 7075-T6, push-in (both sides).
Bearings: 2 precision sealed bearings.
Size: 100x10mm.
Holes: 36H/32H.

Weight: 203g / 7.16oz.

DARTMOOR REVOLT DISC PRO 20 FRONT HUB

Revolt Pro Disc 20 is the hi-end 20mm through axle front hub with the peak of technology and design combined together. This silent wonder will run smooth through any virgin terrain. The hub is equipped with high end Japanese EZO full contact sealed bearings with a special high density grease for even bettter waterproof performance. Revolt Pro Disc 20 is one of the lightest hubs dedicated for the gravity riding. Asymmetrical design with a bigger right side flange with lightweight cuts and a smaller left side flange together with perfectly clean lines put this hub among the best ones in his league.

Size: 110x20mm.
Holes: 36H/32H.

Weight: 165g.

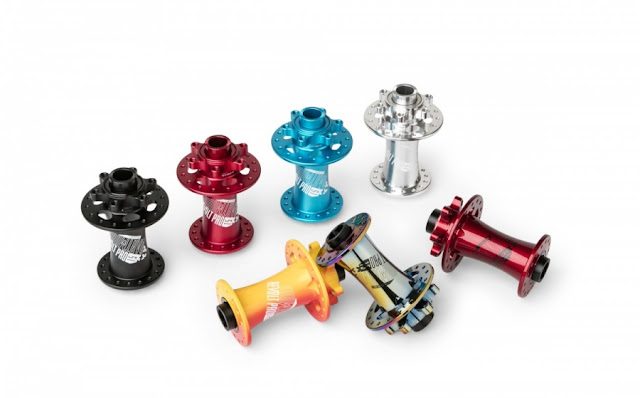

DARTMOOR REVOLT DISC PRO 15 FRONT HUB

Revolt Pro Disc 15 hub is using the same top notch technology as the Pro Disc 20 version just this one is coming with the 15mm through axle standard. It is a perfect choice for all the All Mountain and Enduro riders. With the high end Japanese EZO full contact sealed bearings with a special high density grease this hub will not catch mud easily. High precision machining with tight tolerances make it a hub that will last for years.

Size: 100x15mm.
Holes: 36H, 32H.

Weight: 160g.

DARTMOOR REVOLT DISC 20 / DISC 15 FRONT HUB

Revolt Disc 20 and the new one Revolt Disc 15 will be a choice for those who rather prefer affordable parts than the lightest ones. These 20mm and 15mm through axle hubs with the disc brake mounts have a body made of 6061 aluminium and are equipped with 2 good quality sealed bearings to ensure a long time and smooth spinning of your front wheel. We use now bearings with a special high density grease better protecting against water penetration.

Size: 110x20mm (Revolt Disc 20), 110x15mm (Revolt Disc 15).
Holes: 36H, 32H.

Weight: 205g (Revolt Disc 20), 180g (Revolt Disc 15).

DARTMOOR REVOLT NON DISC 20 FRONT HUB

Revolt Non Disc 20 is our front hub for those who know that the only brake they will use on the front wheel is their foot. The lack of disc rotor mounts makes it possible to give this hub some cool smooth lines. Both flanges are spaced wider now so the whole stiffness raised up and that is what we are looking for when developing new parts for dirt and street riders! The 20mm through axle fits well with the concept of the stiff, light perfectly working front hub.

We use now bearings with a special high density grease better protecting against water penetration.

Size: 110x20mm.
Holes: 36H, 32H.

Weight: 168g.

DARTMOOR RAZOR STREET FRONT HUB

Lightweight BMX front hub for 10mm dropouts. 15mm 7075 aluminium inner axle has a female system with hollow Cr-Mo 3/8” bolts (for 17mm wrench or 8mm Allen key). Hub body made of 6061 aluminium. Both push-in cones made of 7075 aluminium. Two oversized high quality sealed bearings for increased strength. For grinding it is the best to use optional solid bolts.

Hub-shell: alu 6061-T6.
Axle: 15mm female alu 7075-T6 with hard anodized surface.
Bolts: hollow Cr-Mo 3/8”x24T, heat-treated (17mm wrench or 8mm Allen key).
Optional Bolts: solid Cr-Mo 3/8”x24T, heat-treated (recommended for use with pegs).
Cones: alu 7075, push-in (both sides).
Bearings: 2 precision sealed bearings.
Size: 100x10mm.Holes: 36H, 32H.

Weight: 179g / 6.31 oz. (hollow bolts) ; 190g / 6.70 oz. (solid bolts).
Available spare parts: female axle, cones, hollow bolts, solid bolts

DARTMOOR RAZOR PARK FRONT HUB



Ultra light low flange front hub with female alu 7075-T6 axle, Cr-Mo 8mm bolts and 2 sealed bearings. For pegless riding only.

Hub-shell: alu 6061-T6.
Axle: 12mm female alu 7075-T6 with hard anodized surface.
Bolts: Cr-Mo M8x1.25mm, heat-treated (6mm Allen key).
Cones: alu 7075, push-in (both sides).
Bearings: 2 precision sealed bearings.
Size: 100x10mm.Holes: 36H, 32H.

Weight: 129g / 4.55 oz.
Available spare parts: female axle, cones, hollow bolts, solid bolts

DARTMOOR SECTOR FRONT HUB

Sealed front hub with 3/8” chromoly axle, low flange hub shell and 2 precision sealed bearings.

Hub shell: alu 6061-T6.
Axle: Cr-Mo 3/8”x24T, heat-treated.
Nuts: alu 7075 for 17mm wrench (optional Cr-Mo nuts available).
Cones: alu 7075.
Bearings: 2 precision sealed bearings.
Rozmiar: 100x10 mm.
Holes: 36H.

Weight: 198g / 6.98oz.
Available spare parts: male axle, cones, alu nuts, Cr-Mo nuts

DARTMOOR LITE-FORCE FRONT HUB



Lightweight front disc hub for 20mm through axle. Custom body shape. Hub body made of 6061 aluminium. Two high quality sealed bearings. Machined cut-outs in disc side flange and machined disc brake mount for weight reduction.

Size: 110x20mm.
Holes: 36, 32.

Weight: 170g.

DARTMOOR X-DRIVE FRONT HUB



Lightweight front hub for 20mm through axle. Without disc brake mount. Custom body shape. Hub body made of 6061 aluminium. Axle made of 7075 aluminium. Two high quality sealed bearings.

Size: 110x20mm.
Holes: 36, 32.

Weight: 160g.

DARTMOOR B-TWO FRONT HUB



Dartmoor B-Two Front Hub
